MALÅ CX
MALÅ CX
MALÅ CX
MALÅ CX
MALÅ CX

MALÅ CX

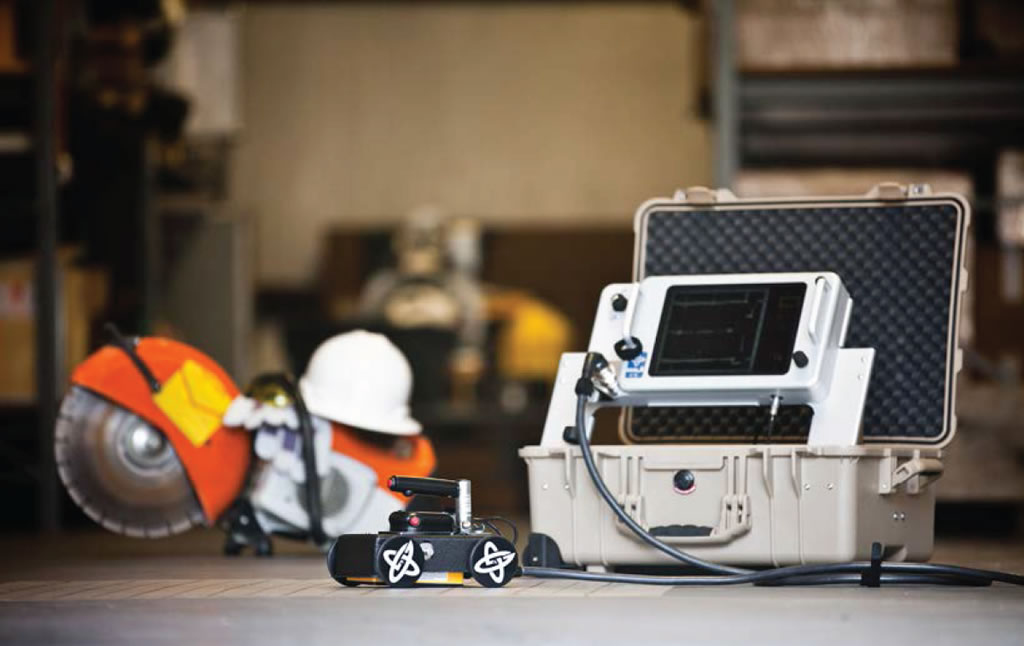

MALÅ ConcreteExplorer (CX) is an easy-to-use, GPR system designed for the non-destructive investigation and imaging of concrete and other man-made structures.

The cutting, coring or drilling of concrete structures requires a safe and reliable means of inspection work to locate and identify hidden metallic or non-metallic features that could cause damage to machinery, pose a danger to the operator or the structure itself during these activities.

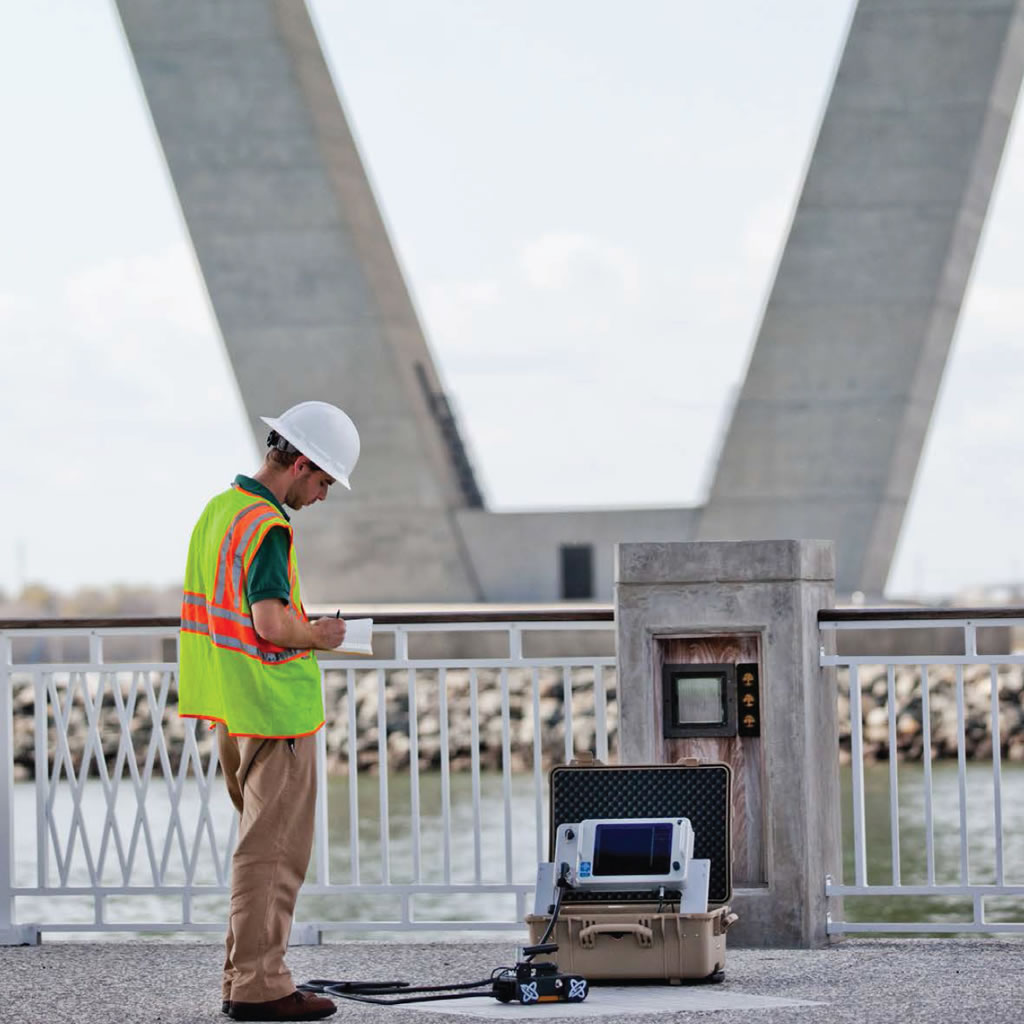

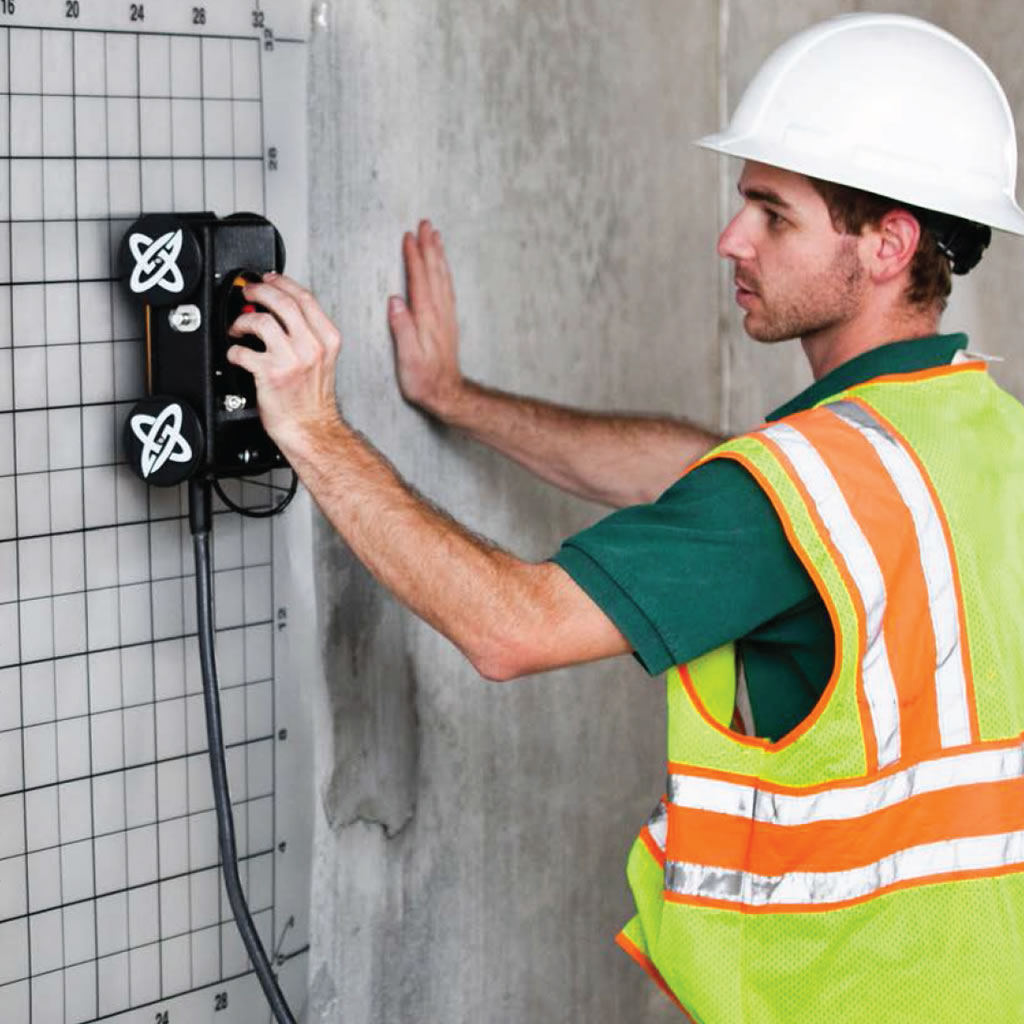

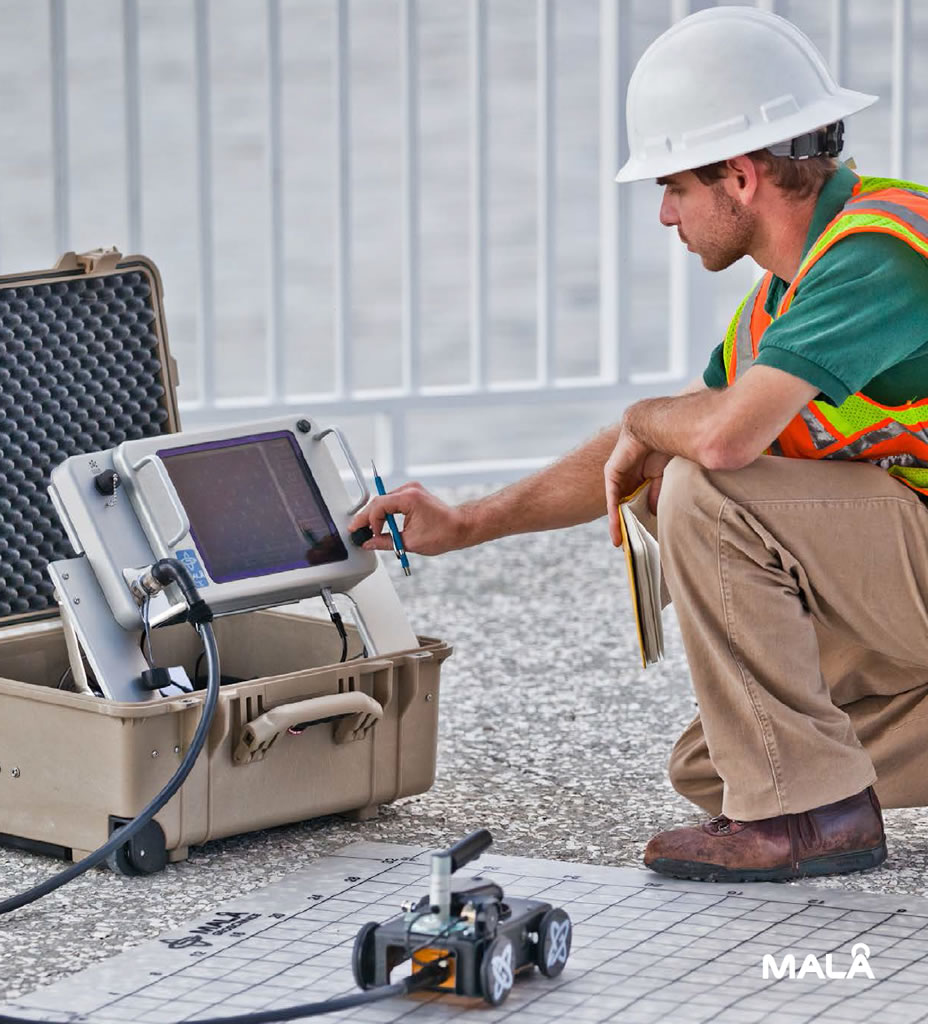

MALÅ CX system allows you to scan concrete structures simply and safely in 2D and 3D. This enables quicker, safer and more cost effective data acquisition compared to traditional radiographic testing methods.

With its simple user interface and functional software features, the MALÅ CX offers a unique powerful choice for your high frequency GPR investigations.

Request a Purchase Quote
Category: Ground Penetrating Radar Tags: Purchase New, Rental Brand: Mala Guideline Geo
  • Description

Description

Advantages

  • Easy-to-use
  • 3D software included

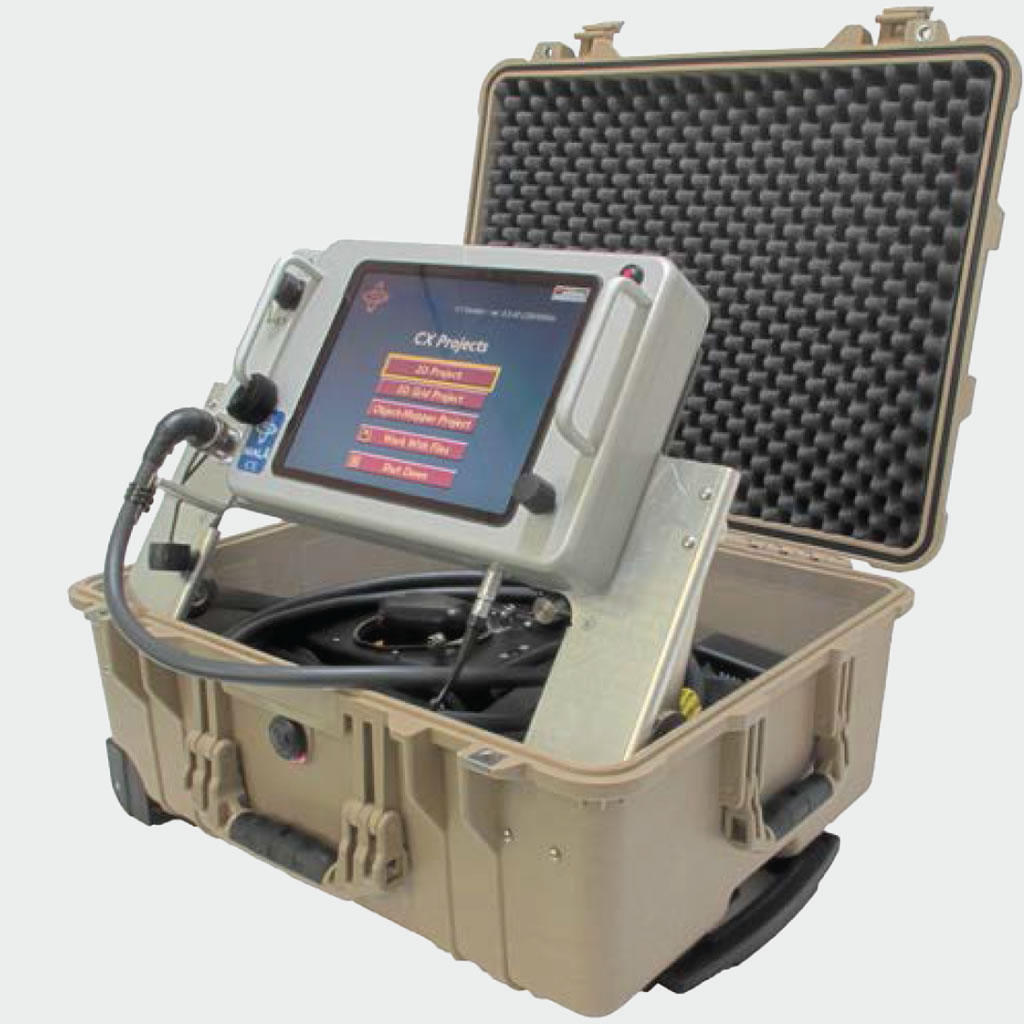

  • Solution packaged in a single rugged case
  • Compatible with MALÅ’s 5 different HF antennas

Typical Applications

  • Concrete investigations
  • Reinforcement studies
  • Road mapping
  • Quality assurance

Features

  • Minimal set-up time
  • 2D and 3D (grid) project modes
  • On-site processing
  • Optional EM (50/60 Hz) functionality
  • Supports 5 different HF antennas

Technical Specifications – CX Control Unit

  • Pulse repetition frequency: 100 kHz
  • Data bits: 16
  • Time stability: Better or equal than 60 ps
  • Sampling frequency: 6-700 GHz
  • Acquisition mode: Distance/time/manual, Grid measurements are controlled by remote controls on antenna/handle, with audio response
  • Time Window: 0-70 nS
  • Power supply: External 12 V DC battery, AC/DC agg. Input 100-240 AC Output 13.2 V DC / 4.5 A
  • Operating time: 6 h
  • Charger: Quick charger, automatic charge cycle 100-240 V AC input
  • Charge time: 3-5 h (80-100 %)
  • Input device: Combined turn-push button
  • Screen: Transreflective 10.4”,weather resistant (IP65)
  • Antenna compatibility: MALÅ High frequency series: 1.2 GHz, 1.2 GHz+EM, 1.6 GHz, 1.6 GHz+EM, 2.3 GHz
  • Dimension: 410 x 210 x 55 mm + protruding details 40 mm
  • Weight: 5 kg
  • Operating temperature: -20 °C to +50 °C or 0 °F to 120 °F
  • Environmental: IP65
  • Data download: USB 2.0
  • Data memory: 1 GB

Technical Specifications – HF Antennas

  • Center frequency: 1.2 GHz, 1.6 GHz and 2.3 GHz
  • Bandwidth: > 100 %
  • Time window: > 50 ns
  • Repetition rate: 100 kHz
  • EM option: 50 Hz or 50/60 Hz sensors (sensitivity 300 uV, 14 bits)
  • Dimensions: 160 x 90 x 110 mm (1.6 GHz and 2.3 GHz) and 190 x 115 x 110 mm (1.2 GHz, 1.6 GHz+EM and 1.2 GHz+EM)
  • Weight: 6 kg: 1.6 GHz and 2.3 GHz 1.0 kg: 1.2 GHz 1.2 kg: 1.6 GHz+EM and 1.2 GHz+EM
  • Cable length: 4 m
  • Operating time: 3 hours (with 12 V battery)
  • Operating temperature: -20 °C to +50 °C or 0 °F to 120 °F
  • Environmental: IP65

Accessories

  • HF mini cart
  • Single measuring wheel
  • Extension handle/ cables
  • Skid / wear plates

Downloads

  • MALA CX Brochure
  • MALA ObjectMapper Software
  • MALA HF Antennas
  • MALA 3DVision
